Soil Grapple
HEMA
Soil Grapple
The HEMA soil grapple is a popular tool that facilitates handling of sand, gravel, asphalt and other materials.
The soil grapple comes in different sizes and from two different series. It can be mounted with a rotator and with customized suspension according to customer specifications.
Products
HJS 90-500
HJS 90-500XL
HJS 90-700
HJS 90-875
HJS 90-1050
HJS 90-1150

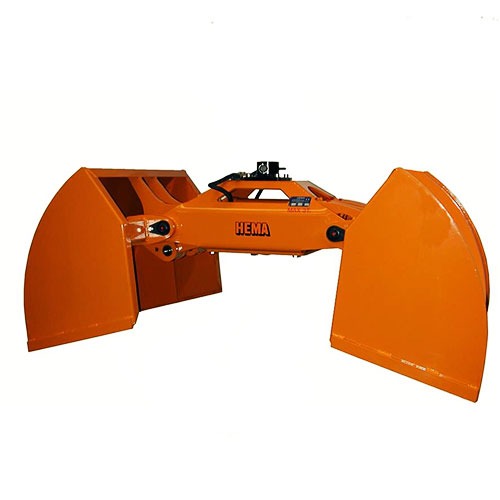

The S-series is HEMA’s new grapple designed for truck operators and contractors. The series is designed to be used where demands are high for the grapple’s strength in terms of digging and breaking ability.
The grapple series is delivered with individual mounting of link, and as standard with a centered hook suspension underneath the top.
The HEMA grapple opens so that the blades are fully vertical, enabling it to grab all the way to the car’s sides.
The S-series has very powerful bolts and bushings in all the moving points, causing high durability and longevity.
The main bolts are spaced apart to achieve stability between the grapple shells.
The S-series grapples are delivered with a pressure relief valve, preset to 200 bar and an adjustable cylinder as on previous models, with the option to compensate for any, possible wear on the blades.
The S-series can now be delivered with
bolt able lifting hooks mounted on each
side of the top. This enables easy lifting of
machines and other materials.
Montering
Click for pdf
HJ 90-350
HJ 90-500
HJ 90-700
HJ 90-1000
The soil grapple is designed for a working pressure
of 170-200 bar, making them applicable to almost
all types of cranes.
The horizontal and well-protected cylinder provides
an extra low construction height, big closing force
and quick opening time.
The HEMA grapple opens up so that the blades are vertical, enabling the grapple to grab all the way to the truck’s sides.
The grapple is delivered in designs that have a larger volume designed for handling of lighter materials such as, mussels, leca and sawdust, etc.
The grapple is delivered with individual adjustment of bolt-mounted suspension for a rotator with a shaft.
All moving bearings are equipped with lubrication and replaceable bearings, which will make any potential reparation easy, fast and affordable.
Montering
Click for pdf

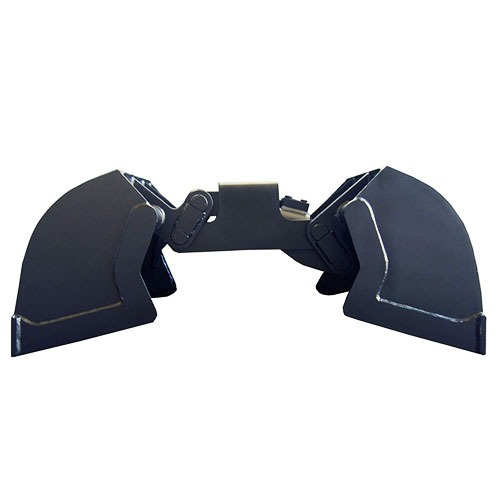

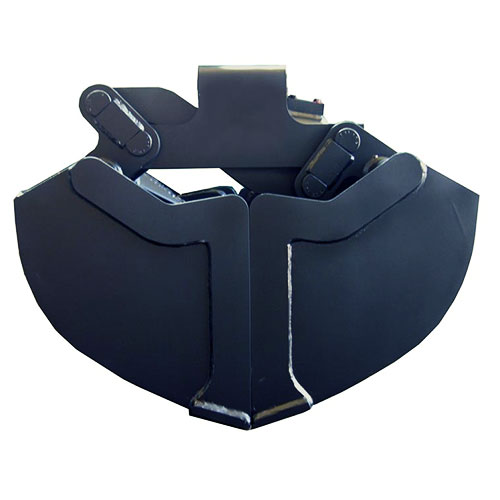

MINI SOIL GRAPPLE
MODEL TIZMAR SERIES BO
The mini grapples are designed for a working pressure of 180-200 bar, making them suitable for almost all truck cranes and mini excavators.
The grapple’s low weight and low height, makes it perfect to be mounted on smaller cranes and mini excavators that often have relatively low lifting height.
The mini-grapple is prepared for mounting by suspension or rotator with mounting flanges 140x140xø17, making it easy to mount suspension and rotators with standard adapters.
The mini-grapple is a supplement to HEMA’s standard program, which is mainly targeted towards the heavier sector within the transport and contractor industry, to meet the great demand for smaller and lighter tools for smaller cranes.
HEMA can deliver additional models than those shown. Request a brochure for the other models by contacting HEMA Crane Equipment.
The grapple is delivered with individual adjustment of bolt-mounted suspension for a rotator with a shaft.
