HEMA

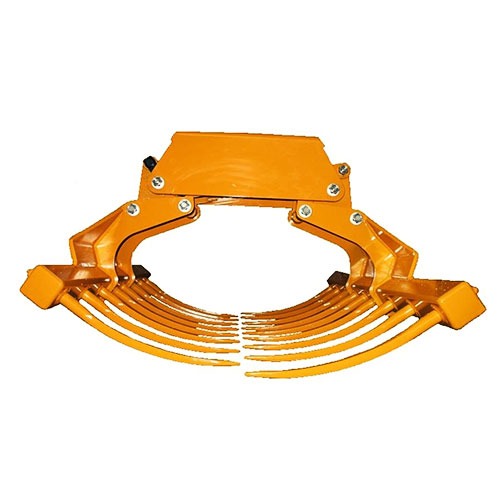

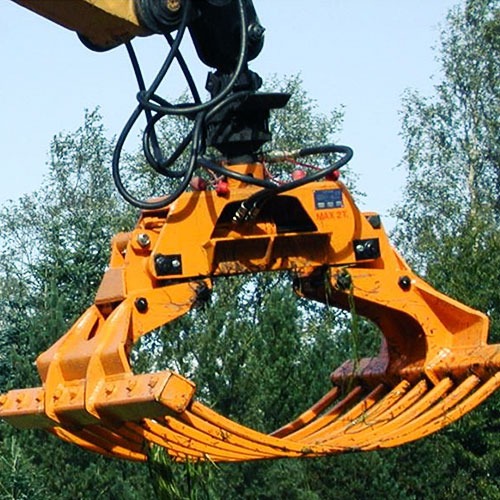

The fertilizer grapples are designed for a working pressure of 170-200 bar, making them applicable for almost all types of auto cranes and machines.

All moving points are equipped with lubrication and replaceable bearings, which will make any potential reparation easy, fast and affordable.

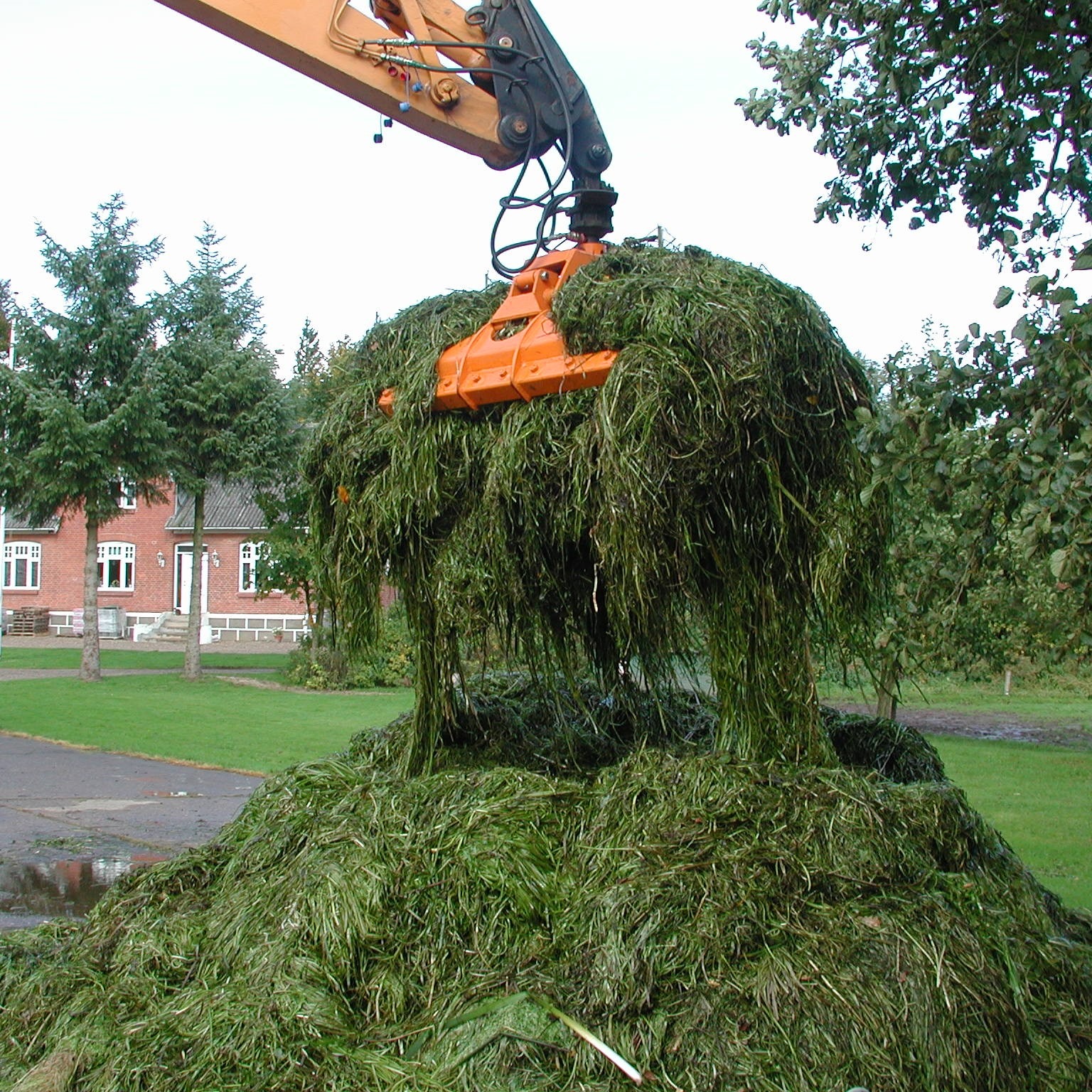

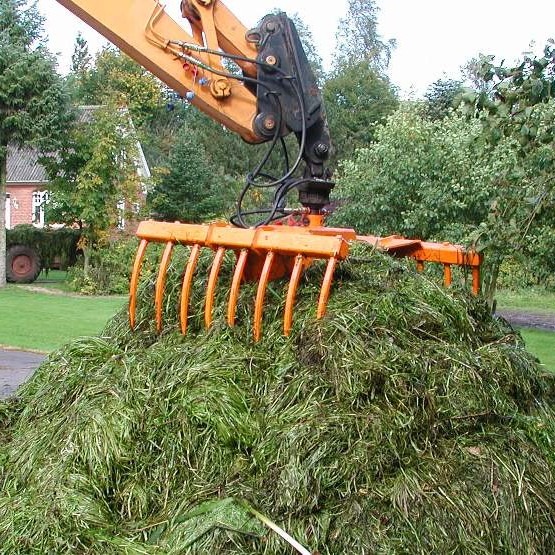

The grapple opens up so that the tips are completely vertical, making it easier to get into the often difficult mass, such as manure, crop etc.

In addition to the standard models, the fertilizer grapple is delivered with individual adjustment of teeth in terms of design and amount, depending on what material it is intended for.

The grapple comes with individually adjustable bolt mounted link for rotators with shafts.

The horizontal and well-protected cylinder provides an extra low construction height, big closing force and quick opening time.

For mounting on cranes and machines with a working pressure over 200 bar, the grapple can be supplied with a reduction valve.
